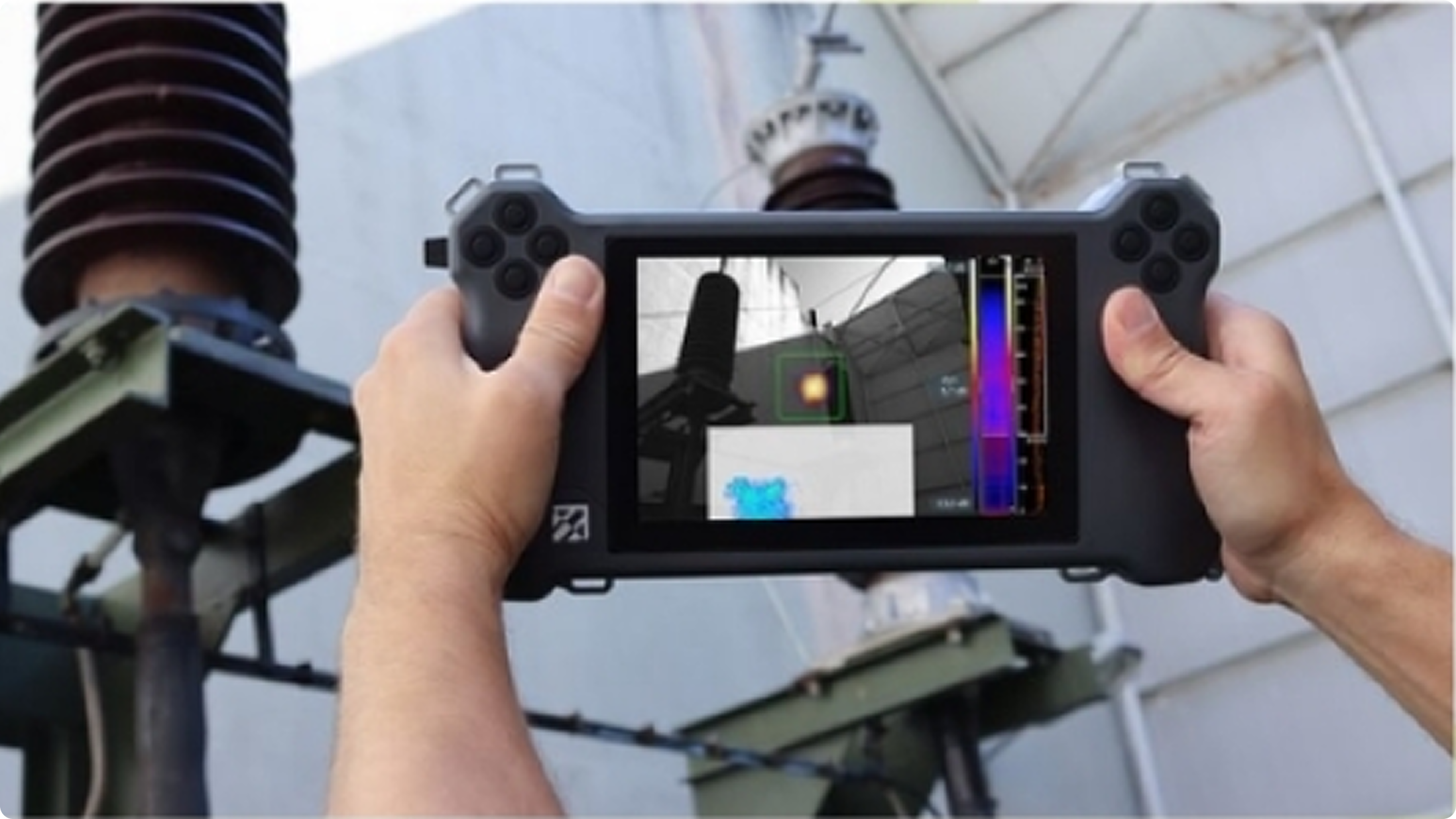

ACOUSTIC CAMERA SONASCREEN® 2 Second Generation Acoustic Camera with thermal imaging function.
Assetconditionmonitoring.com, the authorised distributor of the SONASCREEN® 2 Acoustic Camera, elevates ultrasound detection to the next level. The device detects leaks, identifies electrical partial discharges, and pinpoints mechanical faults — all visually and in real time. It captures ultrasound and audible sounds using a dense microphone array and converts them into on-screen acoustic images or videos. This enables maintenance teams to accurately locate leaks, discharges, bearing noise, and more, even in noisy industrial environments. Technicians can then quickly plan repairs and prevent minor issues from developing into costly failures. The SONASCREEN® 2 sets new standards in hardware, performance, and usability.
Setting new standards in hardware, performance, and accessibility, the SONASCREEN® 2 Acoustic Camera transforms both audible and ultrasonic frequencies into clear acoustic images. It pinpoints sound sources in real time and displays the results directly on its screen, while also providing acoustic feedback through headphones. With its integrated infrared module, the device combines acoustic imaging with thermal imaging, making ultrasound not only audible but also visible. This dual functionality enhances the detection of anomalies and damaged components, ensuring faster, more accurate maintenance decisions.
Key Features
Air Leak detection, PD detection, tightness testing & bio-acoustics
Preset application settings make the device easy to use, ensuring intuitive operation even for less experienced users
Allows technicians to detect faults without disrupting ongoing processes
176 microphones with 200 kHz for capturing acoustic signals
Enables accurate monitoring of the ultrasonic signal displayed on screen
Acoustic and infrared imaging combined in a single device for versatile inspections.
Supports monitoring of audible and ultrasonic signals up to 100 kHz
Enables in-depth analysis of captured raw data, unlike any other camera
Features a 7″ touchscreen with ultra-high resolution
Captures fast-occurring events with 100 frames per second
Built-in flashlight for enhanced visibility
Suitable for use in a wide range of indoor and outdoor industrial applications
UltraSonic LEAK DETECTION with SONASCREEN® 2
- Enables quick and easy leak detection, even in noisy industrial environments
- Combines visual and acoustic imaging for clear sound source visualization
- Detects and displays multiple leaks simultaneously in a single image
- Allows technicians to see and hear sound in real time

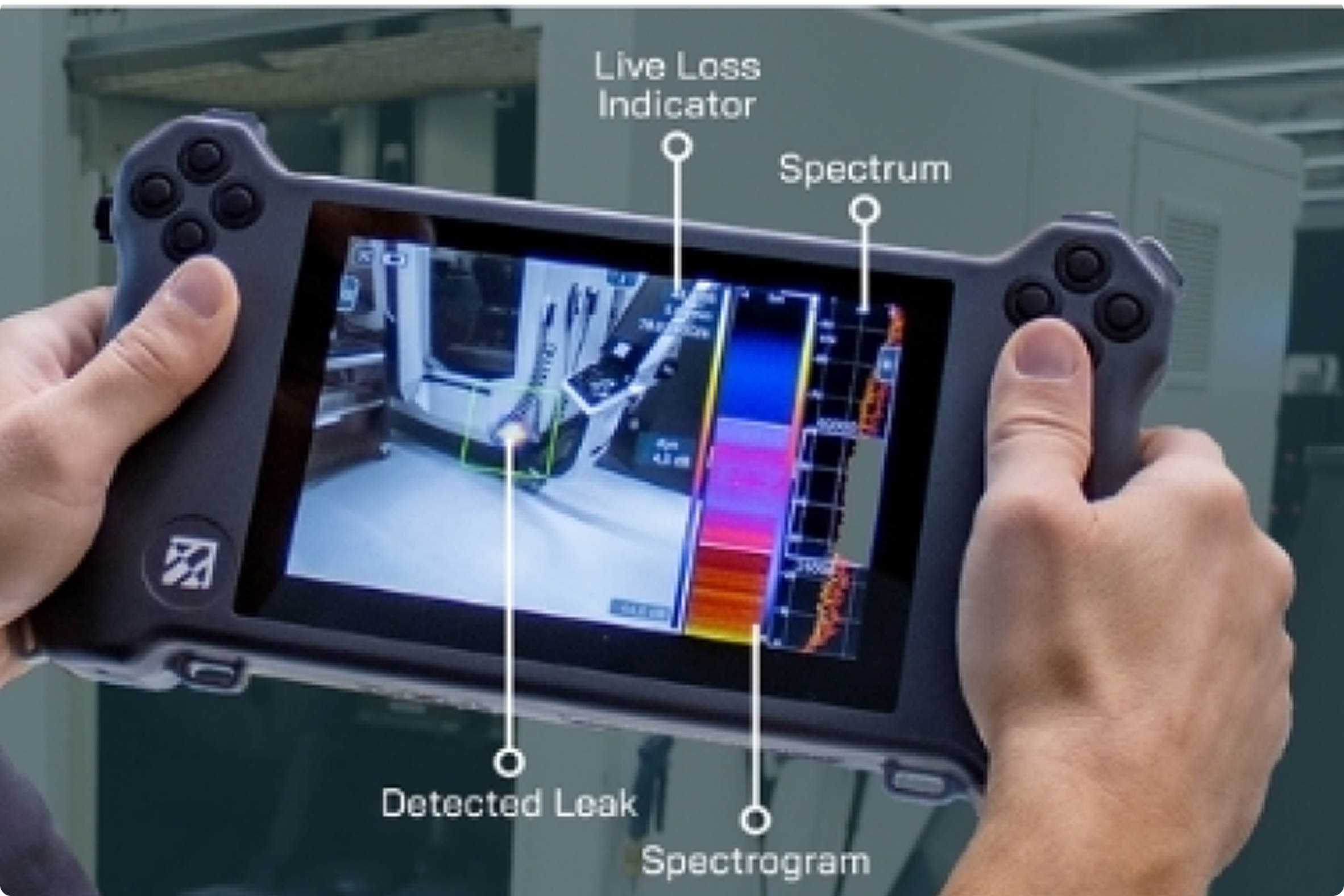

- Features a dedicated LEAKAGE mode with live loss indicator and spectrogram
- Includes free LeakReport software for leakage loss evaluation and professional PDF reporting

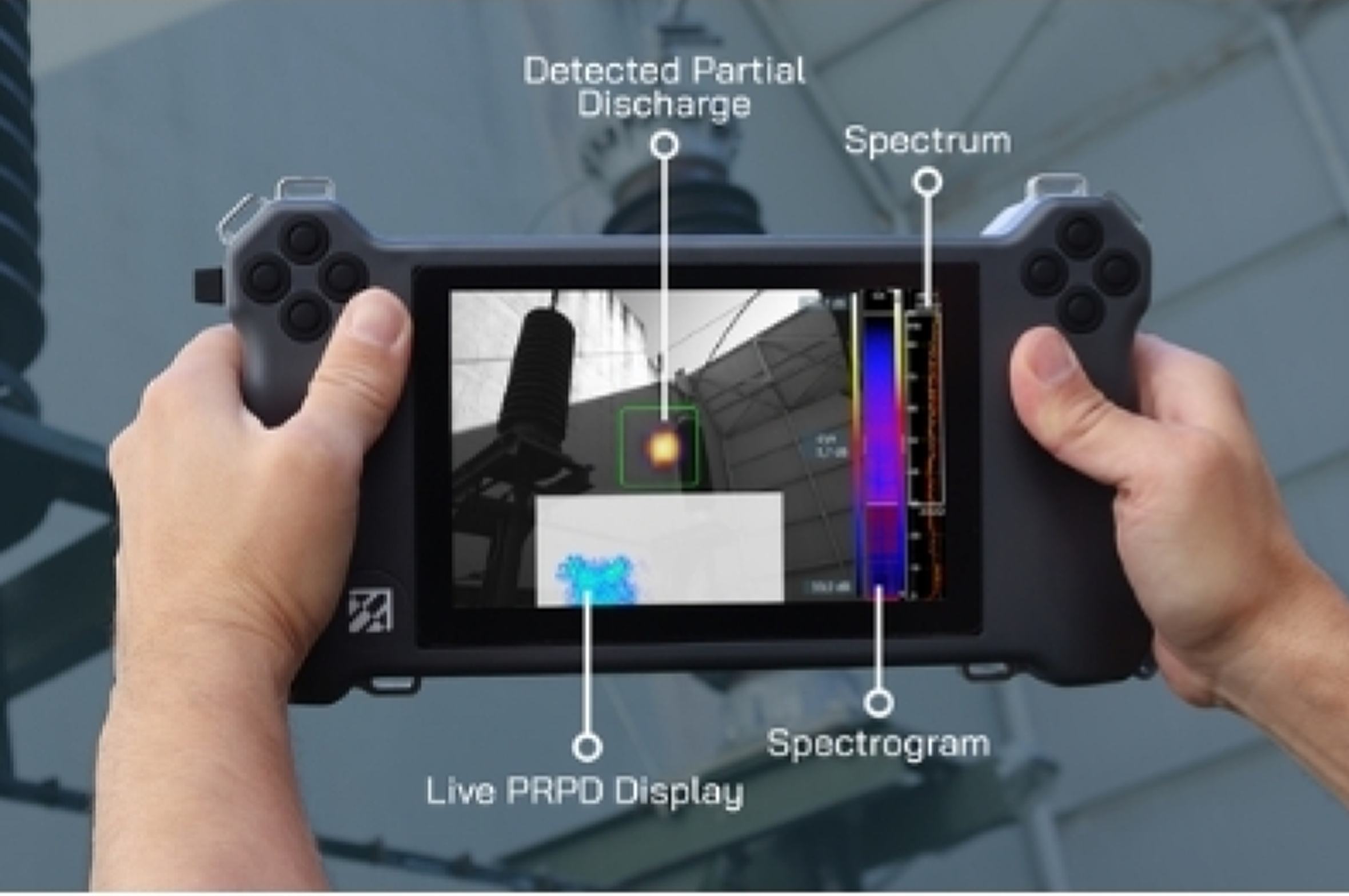

PARTIAL DISCHARGE DETECTION with SONASCREEN® 2
- Enables quick and easy-to-understand partial discharge detection from a safe distance
- Combines visual and acoustic imaging for clear and reliable sound source visualization
- Detects and displays multiple partial discharges simultaneously in a single image
- Helps identify defects at the earliest possible stage
- Spectrogram view makes it easy to recognize typical characteristics of partial discharges
- Includes free PDReport software for detailed evaluation and professional reporting
Get Sonotec’s acoustic testing products at AssetConditionMonitoring.com
Assetconditionmonitoring.com is the authorized partner of SONOTEC in the UAE, offering proven expertise, hands-on demonstrations, and comprehensive support for the SONASCREEN® 2 and a wide range of ultrasonic testing solutions. With over 18 years of industry experience, we have established ourselves as a trusted distributor of SONOTEC technologies across the region. Our skilled team provides specialized training, technical guidance, and after-sales support, ensuring seamless adoption within your maintenance operations. Whether it’s leak detection, partial discharge assessment, or advanced condition monitoring, Assetconditionmonitoring.com delivers tailored solutions to strengthen your preventive maintenance strategy.
